YB-1450H/1650H Servo Type Laminating Machine

INTRODUCTION
This machine adopted with motion control system and servo correction system perfect combination, using multiple sets of photoelectric sensor at the end of the paper the relative position, control top paper on both sides of the servo motor independent drive compensation action, top paper and bottom paper precise positioning. Servo laminating machine has the advantages of simple operation, only need to input the size of paper can be completed automatically adjust the machine.
Specification

Model

YB-1450H

YB-1650H

Max sheet size

1450×1450mm

1650×1650mm

Min sheet size

380×350mm

380×350mm

Top paper thickness

120-500g

120-500g

Precision for front and back

±1mm

±1mm

Weight

7200KGS

8000KGS

Max Speed

150m/min

150m/min

Air Consumption

0.2m3/min

0.2m3/min

Overall

15.5×2.4×2.4M

15.7×2.6×2.4M

Machine power

22KW

25KW

Bottom paper

A、B、C、E、F、G Corrugated paper

Four Layers Corrugated paper: AB/BB/BC/EE

Cardboard paper is above the 300GSM

Detail parts

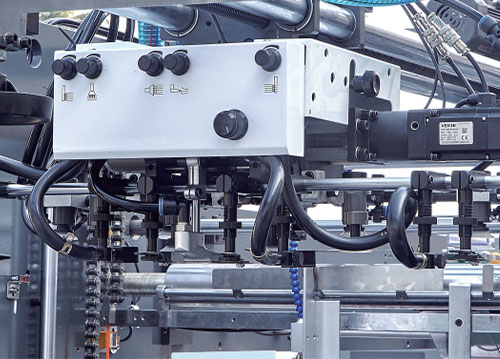

Servo Control Top sheet feeding mechanism

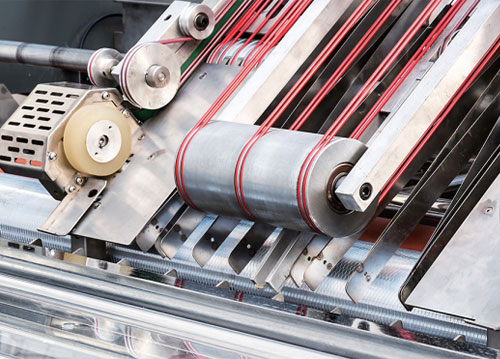

Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
Bottom paper feeding

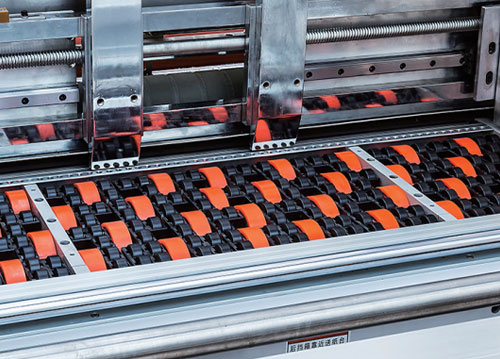

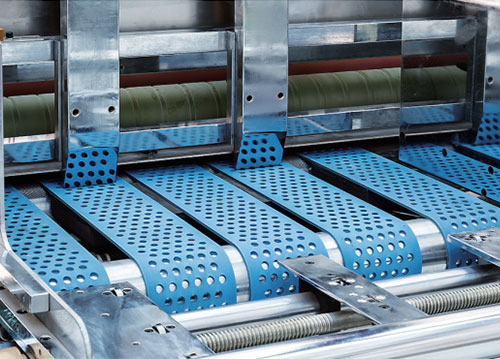

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
Positioning System
Using groups of photoelectric sensing bottom paper forward relative position, control top paper on both sides of the servo motor, independent compensation action, the top paper and bottom paper precision laminated.
Transmission Part

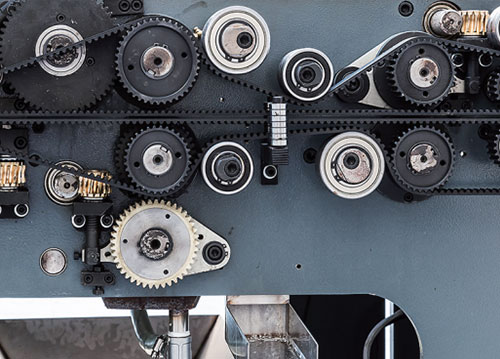

Imported double toothed synchronous belt drive, equipped with a tensioning device to ensure the accuracy of the transmission, stable, low noise.
Glue roller

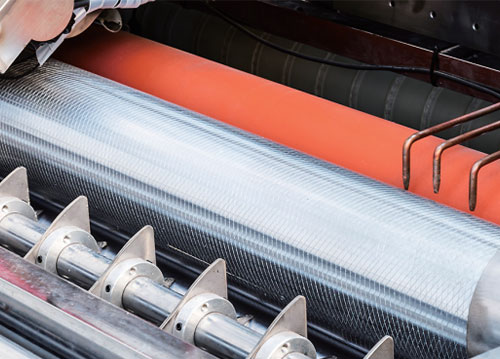

Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
Electrical system

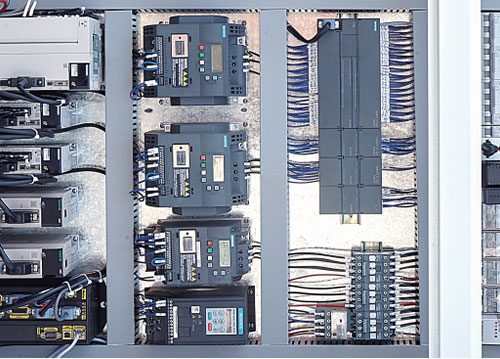

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
Pre-stack section

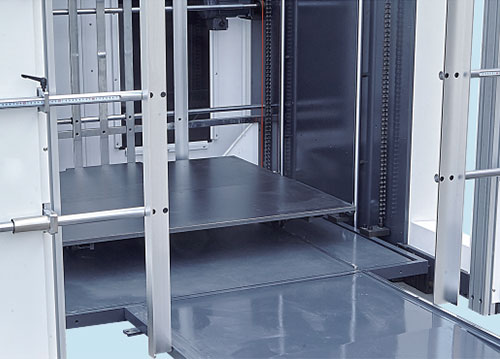

Pre-stack pile of paper under the condition of non-stop,the piled sheet could also be pushed in directly by the forklift; , improve efficiency. The special design of the pre stack paper frame, save time and effort.
Leading Edge Feeding System
This system is for option, more suitable for large size and thick bottom sheets.
