High Speed Laminating Machine and Flip Flop Stacker

INTRODUCTION
High speed automatic laminating machine and flip flop stacker. First the printed sheet and corrugated is laminated accurately and pressed through the conveyor. and then the laminated sheets be stacked based on the set amount in front and back side and slapped automatically and finally the stacked sheets come out automatically, The whole line achieves the high automation of the lamination.
PDF Download Get A Quote

Model

YB-1450HGS

YB-1650HGS

Max Sheet Size

1450x1450mm(57"×57")

1650x1650mm(64"×64")

Min Sheet Size

380*350mm(17"×16")

380*350mm(17"×16")

Top Sheet Thickness

120-500g

120-500g

Bottom Sheet Thickness

A、B、C、E、F Corrugated paper, Four ply corrugated paper, cardboard above 300GSM

Fitting Precision

±1mm

±1mm

Air Consumption

1.2m³/min

1.2m³/min

Measurement

22×2.4×3M

22×2.6×3M

Machine Power

35KW

38KW



Detail parts

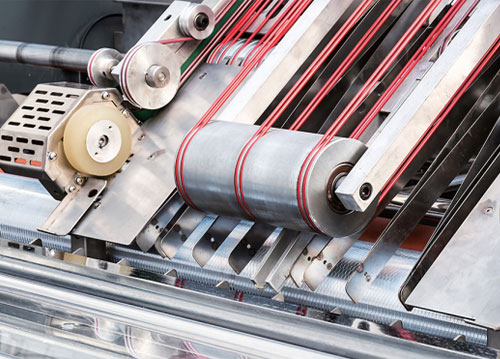

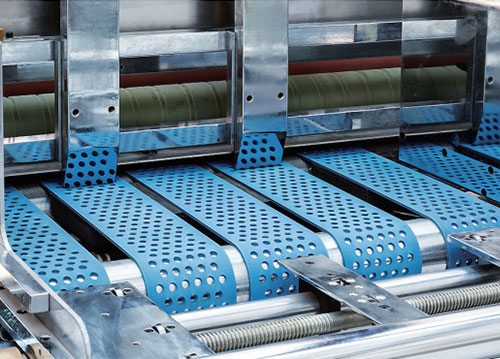

BOTTOM PAPER FEEDING
Use imported servo control, Japan NITTA suction belt, and a water-cleaned roller to ensure smooth and stable sheet feeding.

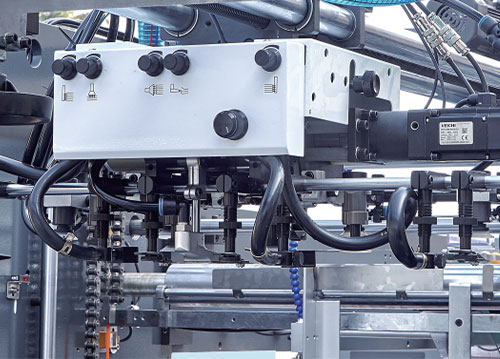

TOP SHEET FEEDING MECHANISM
High-speed feeder with adjustable lifting and nozzle angle ensures fast, stable feeding for thick and thin paper.

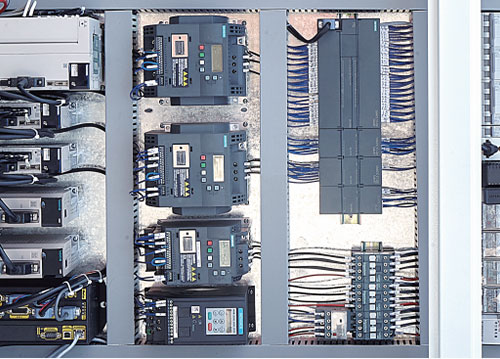

ELECTRICAL SYSTEM
CE-standard electrical system with PLC control provides stable operation and displays machine status in real time.

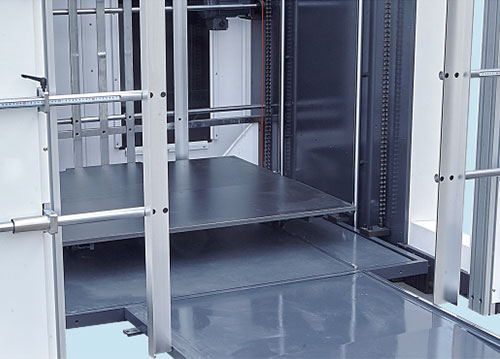

PRE-STACK PART
Non-stop pre-stack system improves productivity while the special frame design reduces labour and setup time.

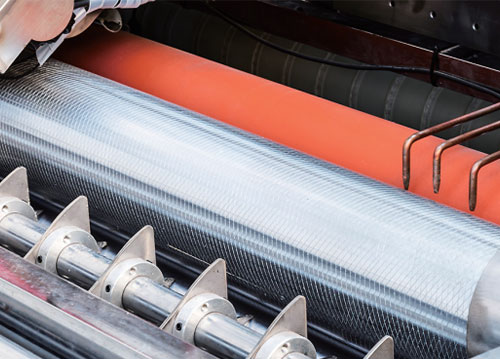

GLUE ROLLER
Precision-ground stainless steel roller ensures uniform glue coating, while the lower roller is automatically cleaned.

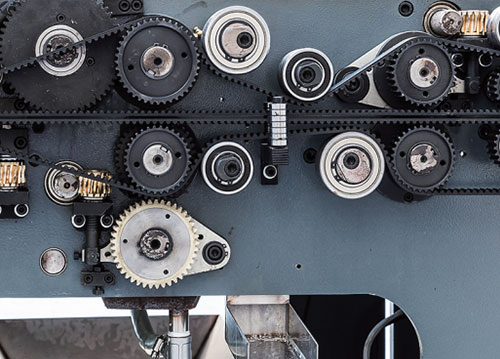

TRANSMISSION
Imported double-tooth belt and ROSTA tension device ensure accurate transmission, stable performance, and low noise.
POSITIONING SYSTEM
Multiple photoelectric sensors and independent servo compensation ensure precise alignment and accurate positioning of top and bottom sheets.

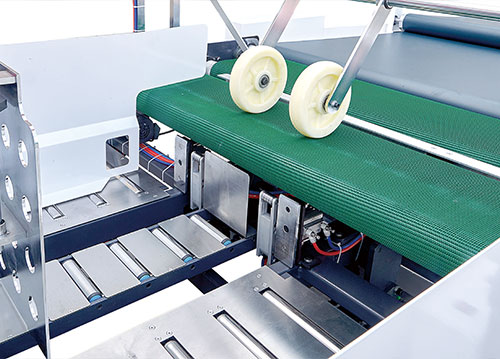

FILP FLOP SYSTEM
Automatically stacks laminated sheets according to the preset quantity, ensuring neat collection and improved production efficiency.
