YB-1207/1210BK Intelligent Cardboard Laminating Machine

INTRODUCTION
This machine adopts the special motion tracing position system that makes the two sheets get aligned accurately. For sheet-to-sheet laminating of cardboard, glossy paper and greyboard, performing a high accuracy. The machine is widely used in the production of wine boxes, tags , puzzle games and gift boxes,etc.
Features

1. Unique dynamic calibration synchronization system.

2. Special design to push the piled paper to the feeder with a pallet truck.

3. Feeder moves back and forth automatically,easy operating.

4. Fluffing delivery system loosens the overlapping finished products and then push them neatly to ensure neat and smooth delivery.

5. The speed and distance of the pressing unit are electrically adjusted.

6. PLC computer control system can automatically detect the operation status, abnormal status, maintenance status and history work.

7. High-precision gluing system, automatic liquid level control, the gluing amount could be precisely adjusted according to the different paper.



Specification

model

YB-1207BK

YB-1210BK

Max sheet size

1200×710mm

1200×950mm

Min sheet size

450×280mm

450×280mm

Top paper thickness

100-800g/m2

100-800g/m2

Bottom paper thickness

180-1200g/m2

180-1200g/m2

Accuracy

±0.5mm

±0.5mm

Weight

7500KGS

7500KGS

Machine power

20KW

20KW

Detail parts

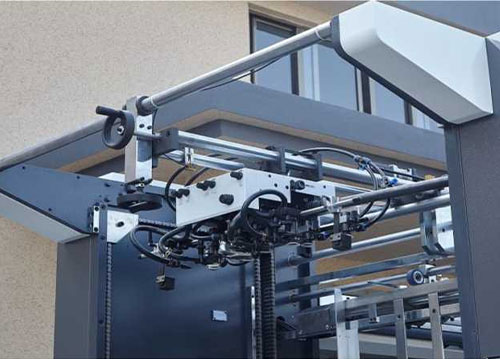

Feeder system
Equipped with high speed dedicated feeder, feeding nozzle can freely adjust the angle to the paper;Feeder position adjusts automatically.

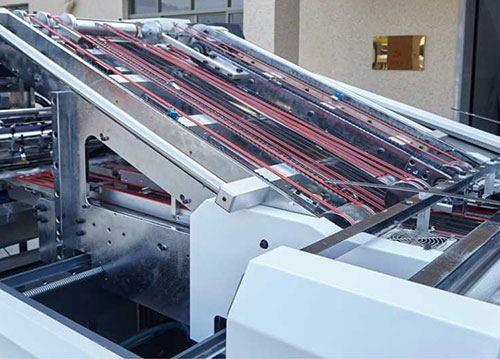

Laminating system
The paper is chased against the gauge by the speed difference between the paper and the motion gauge, performing high accuracy.

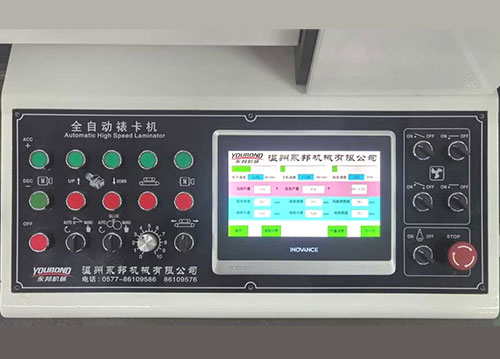

Electrical system
Designed in the accordance with European CE stacdard, human-machine interface detects the faults automatically and alarms any abnormal.

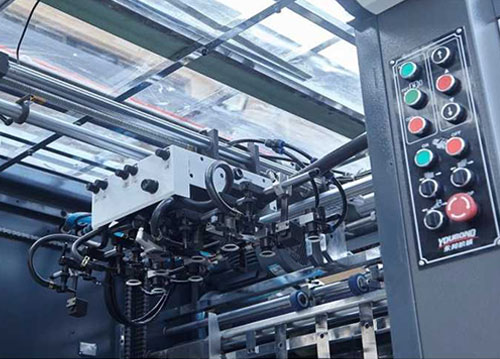

Bottom Feeding system
Equipped with high speed dedicated feeder, feeding nozzle can freely adjust the angle to the paper;Feeder position and feeding width adjusts automatically.

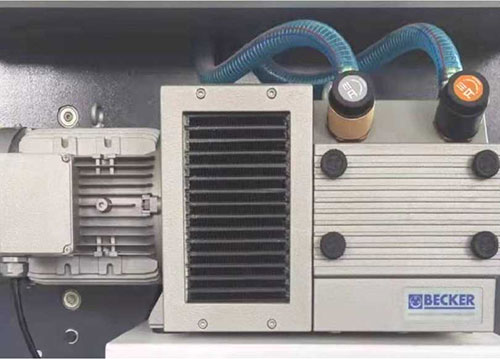

Airing System
Equipped with two Germany Baker pumps that provide the stable airing supply for both up and bottom feeder.
