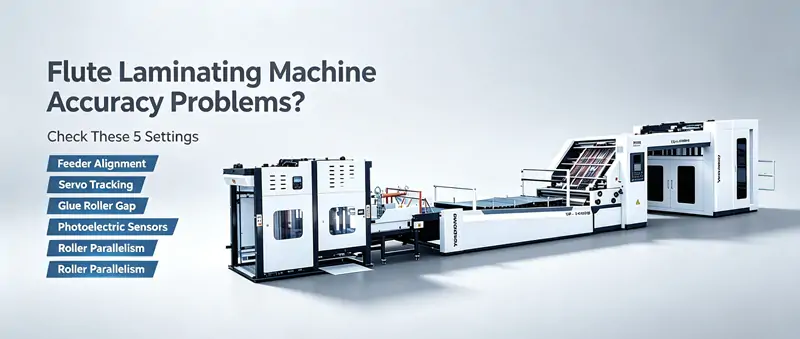

When a flute laminating machine starts producing sheets where the top and bottom layers don't align, the cause is rarely a single component failure. More often, accuracy degrades gradually as settings drift, mechanical parts wear, or operating conditions change. Before calling for a service technician, there are five adjustment points that often restore proper registration—and they can be checked systematically by an experienced operator.
The first place accuracy problems show up is at the feeding section. If the top sheet is not consistently positioned before it meets the bottom sheet, no amount of downstream correction can compensate.
Modern flute laminators use stream feeding with side-pulling ball positioning. Over time, the feeder side guides can shift due to vibration or paper dust buildup. Check that the side guides are square to the feed direction and that the gap matches the sheet width without binding or excessive play. Worn or contaminated positioning balls should be cleaned or replaced—their ability to hold the sheet edge determines the starting point for all downstream alignment.
Also verify that the feed table height and angle are set correctly for the current paper weight. The YOUBOND product range handles top sheet thickness from 120-500gsm; a machine set for lightweight paper may feed heavyweight board inconsistently, causing skew that reads as a lamination accuracy problem.
Most automatic flute laminating machines today use servo-driven positioning with automatic tracking. The YOUBOND models highlight a "servo compensation positioning automatic tracking system" that continuously adjusts the top sheet position based on sensor feedback.
If the servo tracking parameters are off, the machine may over-correct or under-correct, producing sheets that are consistently offset in one direction. Check the photo sensor alignment first—dirty or misaligned sensors can send incorrect position data to the servo controller. Then verify the servo compensation settings in the machine's HMI. These parameters typically include gain, offset, and response speed values that may need adjustment after a change in paper weight, sheet size, or production speed.
On machines equipped with full servo motor control—the YOUBOND high-end models use up to 10 servo motors—each axis may have its own tuning parameters. Consult the machine manual for the recommended baseline values and make small, measured adjustments while monitoring sheet alignment in real time. For a closer look at the servo-driven models and their automatic compensation features, you can review the available flute laminating machine configurations.
The glue application stage affects more than bond strength—it directly influences how the top and bottom sheets meet. If the glue roller gap is too large, insufficient adhesive allows the sheets to shift after lamination. If too small, excess glue can cause the top sheet to hydroplane or wrinkle on contact.
The YOUBOND fully automatic models feature auto pressure adjustment and auto glue adjustment. Check that these automated systems are calibrated correctly. For manual or semi-automatic machines, measure the roller gap with a feeler gauge and compare to the specification for the paper weight in use. The glue roller itself also matters: the high-end machines use large-diameter rollers (165mm) for more stable application. A worn or unevenly surfaced roller will create inconsistent glue films that cause local adhesion problems—check the roller surface for scoring, hardening, or uneven wear.
Sensors are the eyes of an automatic flute laminator. The YOUBOND product descriptions mention "photoelectric sensors for precise alignment of top and bottom sheets" and "multiple sensors providing precise laminating alignment." Even a small layer of dust on a sensor lens can degrade its ability to detect the sheet edge accurately.
Inspect each sensor in the registration and compensation zones. Clean lenses with a soft, lint-free cloth—do not use compressed air, which can force dust into the sensor housing. After cleaning, run a test sheet and observe whether the sensor triggers consistently. If a sensor is slow to respond or produces intermittent signals, check the wiring connection and mounting bracket for looseness.
Sensor positioning is equally important. A sensor that has been bumped out of alignment during a jam clearance may be reading the wrong part of the sheet edge. Verify that each sensor is positioned at the correct height and angle according to the machine setup manual.
Over months of high-speed operation, the mechanical foundation of a flute laminating machine can shift. The YOUBOND heavy-duty models use a casting frame (40mm thickness on the higher-end units), but even robust frames require periodic checks.
Verify that the main rollers—glue roller, pressure roller, and transfer rollers—are parallel to each other and to the machine frame. Non-parallel rollers create uneven pressure across the sheet width, causing one side to bond before the other and leading to skew or trapped air. Use a dial indicator or laser alignment tool to measure roller parallelism. The tolerance should be within the manufacturer's specification, which may be indicated in the maintenance manual.
Also check the frame level. A machine that has settled on an uneven floor will develop accuracy issues that no amount of electronic adjustment can fully correct. Re-level the machine if needed, and confirm that all mounting bolts are torqued to specification.
| Setting to Check | What to Look For | Typical Action |
|---|---|---|
| Feeder alignment | Side guide squareness, ball cleanliness | Adjust guides, clean or replace positioning balls |
| Servo tracking | Sensor alignment, compensation parameters | Clean sensors, recalibrate HMI settings |
| Glue roller gap | Gap measurement, roller surface condition | Adjust gap, resurface or replace worn roller |
| Photoelectric sensors | Lens cleanliness, trigger consistency | Clean lenses, check wiring and brackets |
| Roller parallelism | Parallelism of glue, pressure, and transfer rollers | Measure and adjust, check frame level |
All machine features referenced are based on YOUBOND product specifications. Actual adjustment procedures should follow the machine's specific maintenance manual.
Q: Why does my machine produce accurate sheets for one paper weight but not another?
A: Feeder settings, servo compensation, and glue roller gap are all sensitive to paper weight. A machine calibrated for 200gsm top sheets will need readjustment when switching to 400gsm. Some machines offer automatic adjustment—input the paper size and the machine sets itself. Check whether your model has this feature and whether it's functioning correctly.
Q: How often should I check sensor alignment?
A: As a preventive measure, inspect and clean sensors at the start of each shift. If you've had a paper jam or if the machine has been moved, check sensor positions immediately after clearing or relocating.
Q: Can I fix roller parallelism issues without professional service?
A: Some operators can adjust roller parallelism using dial indicators and following the manual's procedure. However, if the frame itself has shifted or if bearings are worn, professional realignment is recommended to avoid causing further damage.
Q: Why does accuracy drift during long production runs?
A: Thermal expansion of components, glue viscosity changes as the machine warms up, and gradual sensor fouling can all cause drift. Monitor sheet alignment periodically during a run and make small corrections rather than waiting for the problem to become visible in finished product.
Q: What's the difference between mechanical and servo compensation in accuracy control?
A: Mechanical systems rely on fixed cam-driven timing that cannot adapt to changing conditions. Servo compensation uses sensor feedback to continuously adjust sheet positioning, providing better consistency across varying speeds and paper types. The YOUBOND servo models include this as a standard feature.
Most accuracy problems on a flute laminating machine trace back to one of five areas: feeder alignment, servo tracking settings, glue roller condition, sensor cleanliness and positioning, or mechanical roller parallelism. Checking these systematically often resolves registration issues without requiring major repairs or extended downtime.
If you've worked through these checks and accuracy is still inconsistent, the issue may lie deeper—in worn servo motors, damaged drive components, or controller faults that require manufacturer support. At that point, having access to experienced technical service becomes important. If you need technical support for an existing machine or want to discuss your production requirements, contact YOUBOND to discuss your specific accuracy issues.
