Basic Box Type:

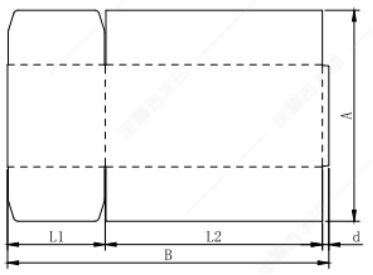

Basic Box Type

L2	Box Length	320-800MM
L1	Box Width	180-520MM
A	Full Height	350-750MM
B	Full Length	530-1100MM
d	Stitching Width	30-40MM

Technical Parameters:

Model	YB-1100D
Max speed	2000 PCS/H
Corrugated board type	AB/BC/BE/EE/A/B
Machine Power	27 KW
Machine Weight	4500KG
Machine Layout	925026502130mm

Dimension Layout:

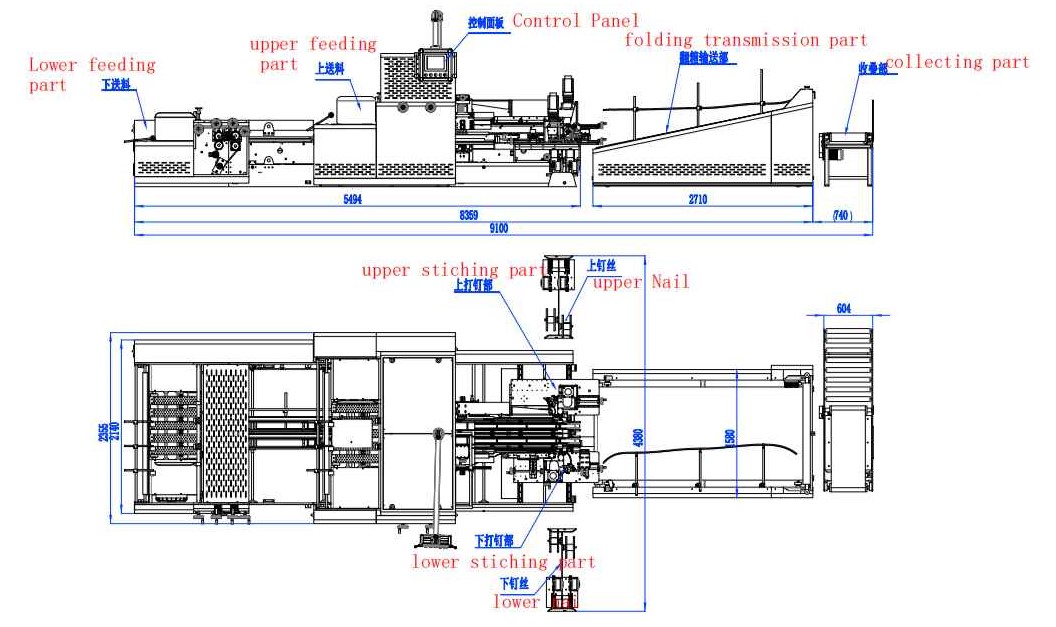

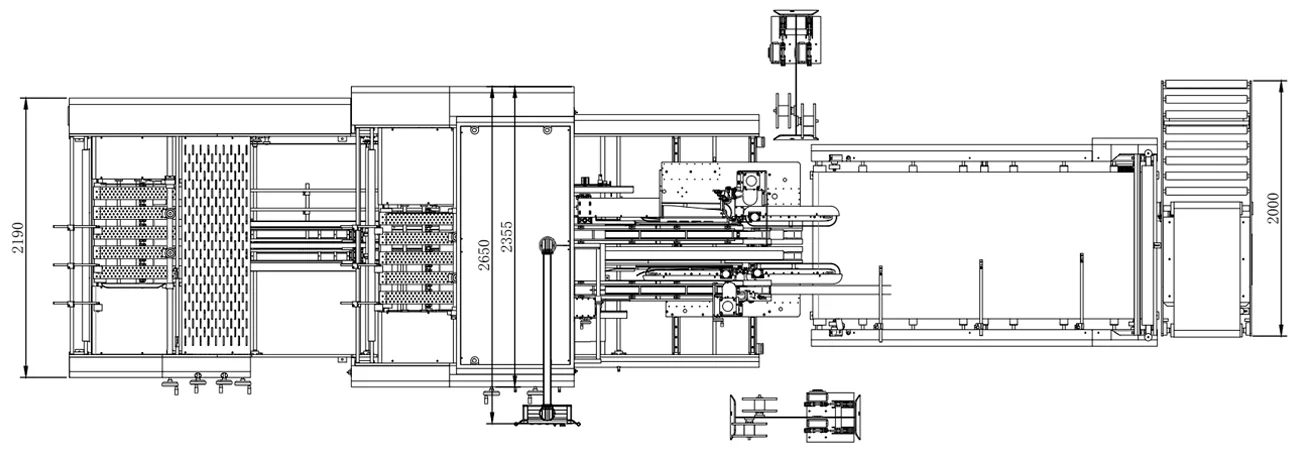

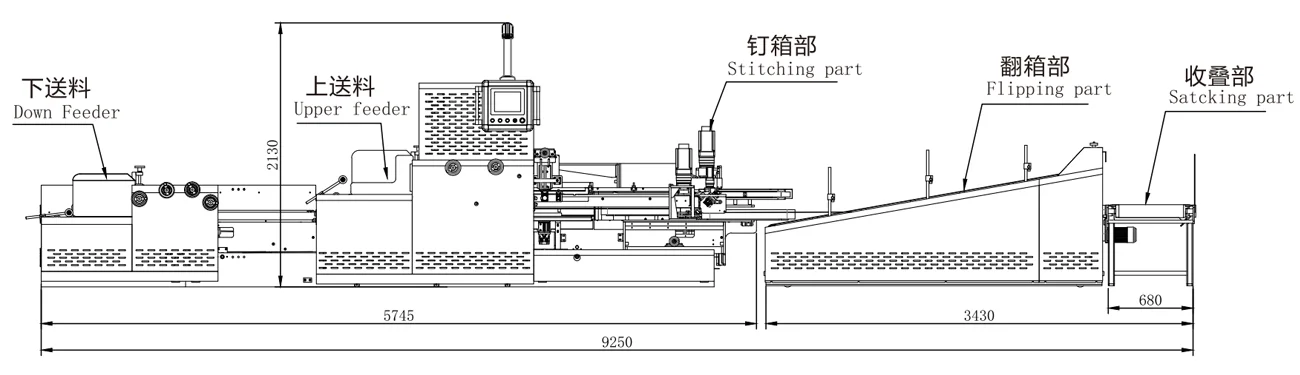

Two-Piece-Carton-Stitcher-Floor-Plan Two-Piece-Stitching-Machine-Floor-Plan

Main Parts List:

Parts Name	Brand	Country
PLC	VEICHI	China
Servo motor	VEICHI	China
Servo Drive	VEICHI	China
Touch Screen	FLEXEM (REMOTE CONTROL FUNCTION)	China
Contactor	Schneider	France
Contactor	Schneider	France
Low Voltage Electrical parts	Schneider	France
Button	Schneider	France
Solenoid Valve	Airtac	Taiwan
Cylinder	Airtac	Taiwan
Switch	MINGWEI	Taiwan
Bearing	NSK	Japan

Detail parts

Feeding part

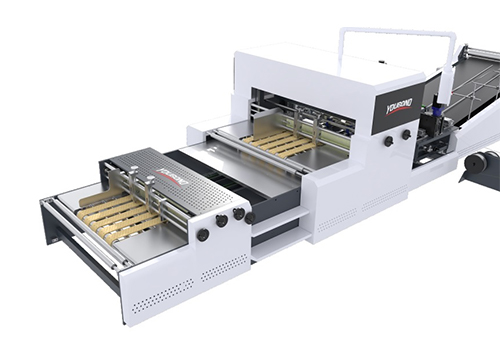

China first double pieces stitching machine with upper and lower feeding.The corrugation board is fed in vertical direction, which makes the feeding more smooth.

Second positioning

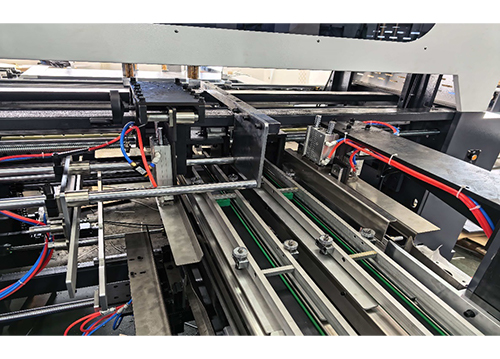

Both upper and lower paper board are aligned by the flapping board for second positioning, a design specialized for solving the situation of non-accurate folding line,misalignment and uneven edges.

Stitching part

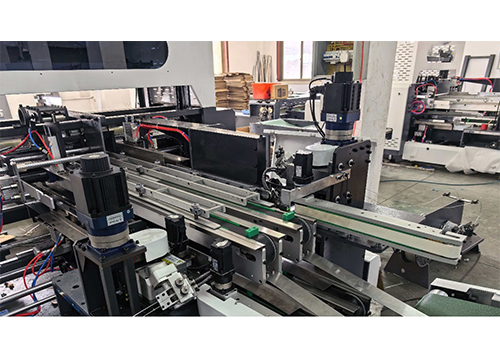

The pins generator are driven by double servos, installed symmetrically, coordinating with the 4 servos in the back and forth that flat and clip the boards. The full closed-loop control of pin-distance, position, and strength makes a high accurate of positiong and prevent the situation of fish tail

Operation part

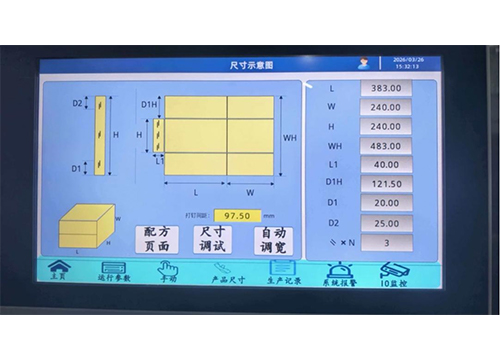

A self-invented system with totally automatic adjustment by setting the lenthg, width, pin-distance and pin quantity, after which the machine will adjust automatically. It also has the memory function for the previous orders.

Flipping part

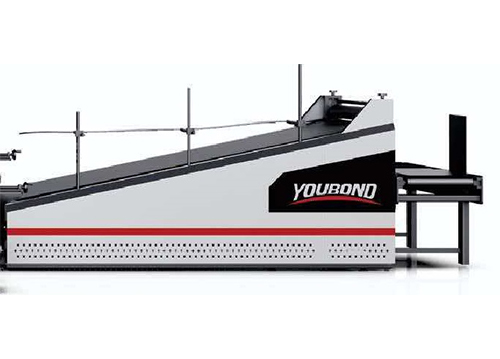

After stitching, the cartons will flip automatically, passing the pressure roller and stacking by the setting quantity, counted and output.

Electrical part

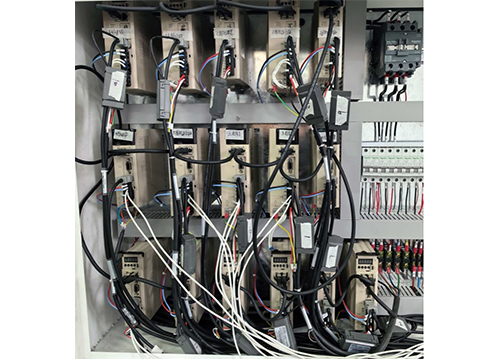

Equipped with EtherCAT motion controller and 16 servos that achieves a 16-axis shaftless linkage control.
