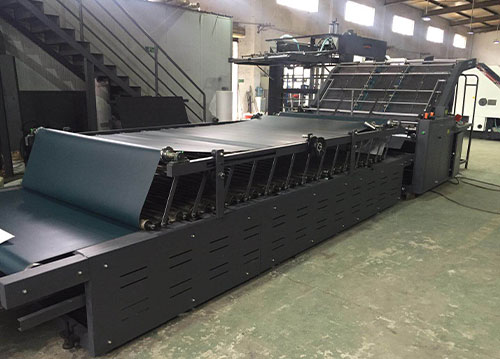

YB-1100B/1300B/1450B/1650B Semi-Automatic Flute-Laminating machine

INTRODUCTION
This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. it is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.

Automatic paper lifter (To Choose)

Single feeding, bottom sheet feeding automatic, unilateral regulation, water roller cleaning.

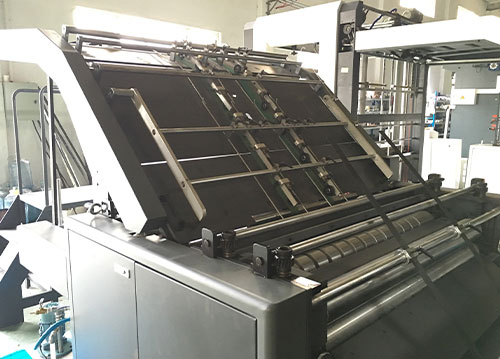

High feeding table, easy paper adding



Characteristics

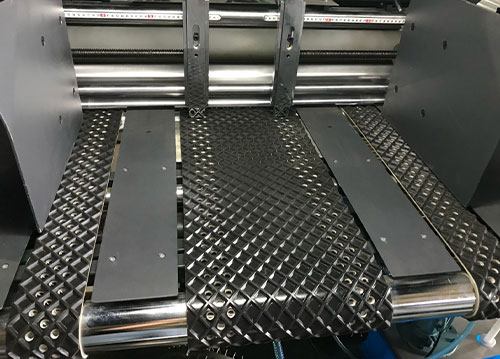

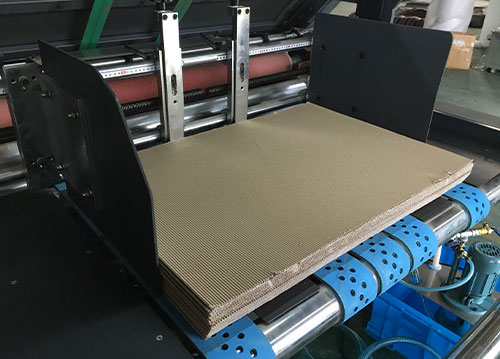

Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking..

The humanized design that manualy feeding from the front makes delivery more easier and efficient.

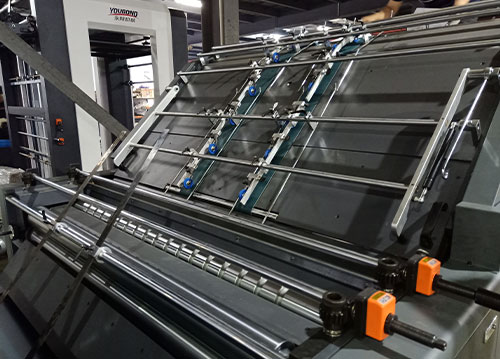

Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.

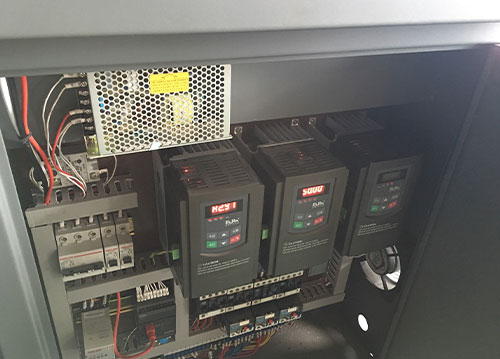

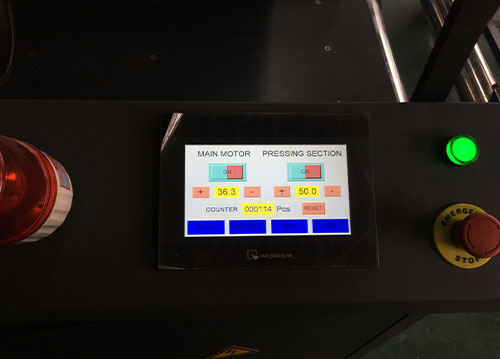

Machine uses touch-screen/PLC control system, the circuit system is stable,and can automatically display the failure alarm.

The automatic replenishment system of glue can be added automatically during glue losses,and recycling with the glue to avoid loss of waste.

The scientific design of the metering roller speed to ensure the glue evently on the same time , to avoid rejection of glue at high speed.

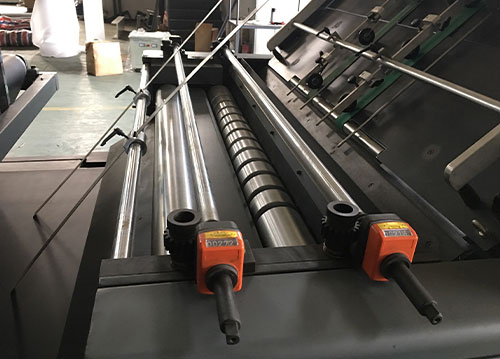

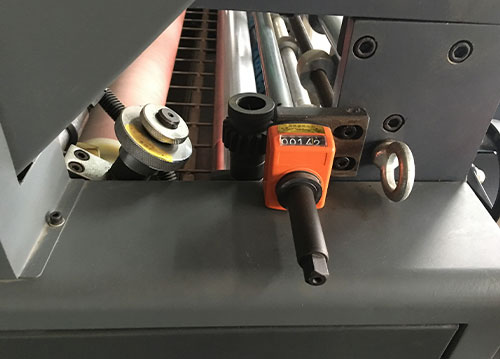

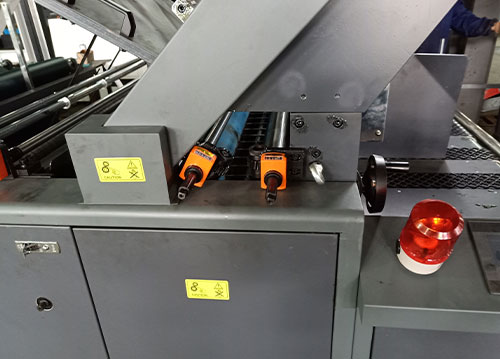

Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data , easy adjust ment when change the size of bottom paper.

Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank at the same time.

Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and grey cardboard paper laminating.



Specification

Model

YB-1100B

YB-1300B

YB-1450B

YB-1650B

Max Sheet Size

1100×1100mm

1300×1250mm

1450×1250mm

1650×1250mm

Min Sheet Size

350×350mm

350×350mm

350×350mm

350×350mm

Total Power

8kw

8kw

9kw

11kw

Speed

0~90m/min

0~90m/min

0~90m/min

0~90m/min

Machine Weight

3500kg

4000kg

4500kg

5500kg

Dimensions

8×1.77×1.75M

8×1.97×1.75M

10×2.02×1.75M

10×2.25×1.75M

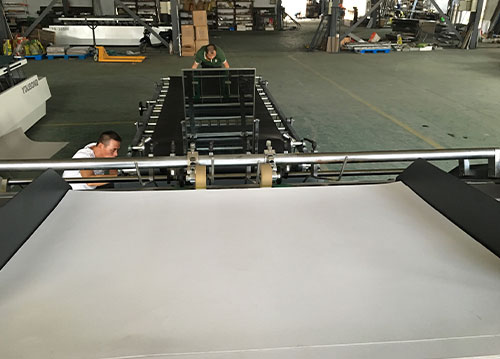

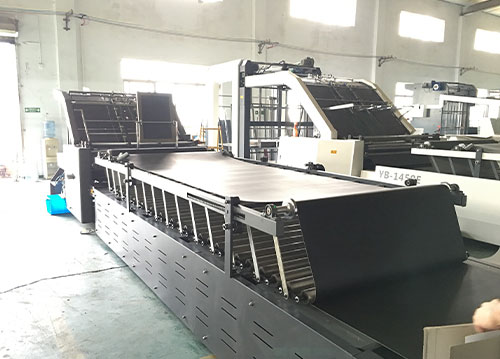

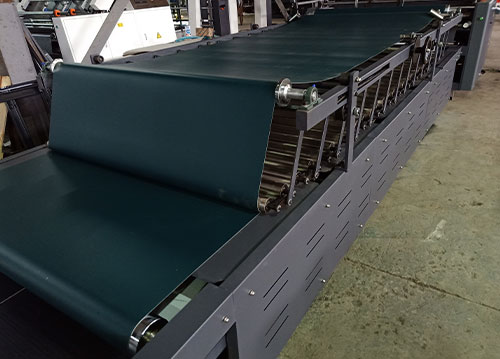

Detail parts
